Spécification
Voici les caractéristiques de la carte «EGA Wonder» de «ATI»:
| Spécification | Description |
|---|---|
| Fabricant | ATI Technologies Inc. |
| Ensemble de puces | ATI 18800 |
| Bus/Interface | ISA 8-bits |
| Type de mémoire | DRAM |
| Catégorie | Super EGA |

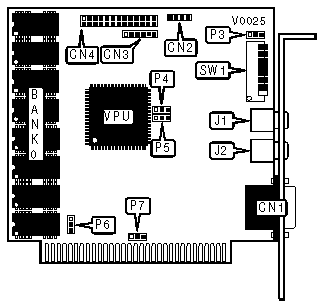

Voici la maquette de la carte graphique:
Mode vidéo
Voici la liste des différents modes vidéo supporté par la carte:
| Mode | Type | Couleurs | Format Alpha | Taille car. | Taille écran | Adresse écran |
|---|---|---|---|---|---|---|
| 00h | Texte | 16 | 40x25 | 8x14 | 320x350 | B800h |
| 01h | Texte | 16 | 40x25 | 8x14 | 320x350 | B800h |
| 02h | Texte | 16 | 80x25 | 8x14 | 640x350 | B800h |
| 03h | Texte | 16 | 80x25 | 8x14 | 640x350 | B800h |
| 04h | Graphique | 4 | 40x25 | 8x8 | 320x200 | B800h |
| 05h | Graphique | 4 | 40x25 | 8x8 | 320x200 | B800h |
| 06h | Graphique | 2 | 80x25 | 8x8 | 640x200 | B800h |
| 07h | Texte | 4 (Mono) | 80x25 | 9x16 | 720x400 | B000h |
| 08h | Texte | 16 | 132x25 | 8x8 | 1056x200 | B800h |
| 08h | Texte | 4 (Mono) | 132x25 | 8x8 | 1056x200 | B000h |
| 0Dh | Graphique | 16 | 40x25 | 8x8 | 320x200 | A000h |
| 0Eh | Graphique | 16 | 80x25 | 8x8 | 640x200 | A000h |
| 0Fh | Graphique | 4 (Mono) | 80x25 | 8x14 | 640x350 | A000h |
| 10h | Graphique | 16 | 80x25 | 8x14 | 640x350 | A000h |
| 11h | Graphique | 4 (Mono) | 80x30 | 8x16 | 640x480 | A000h |
| 12h | Graphique | 16 | 80x30 | 8x16 | 640x480 | A000h |
| 23h | Texte | 16 | 132x25 | 8x8 | 1056x200 | B800h |
| 27h | Texte | 4 (Mono) | 132x25 | 8x8 | 1056x200 | B000h |
| 33h | Texte | 16 | 132x44 | 8x8 | 1056x352 | B800h |
| 37h | Texte | 4 (Mono) | 132x44 | 8x8 | 1056x352 | B000h |
| 51h | Graphique | 16 | 80x34 | 8x14 | 640x480 | A000h |
| 52h | Graphique | 16 | 94x29 | 8x14 | 752x410 | A000h |
| 53h | Graphique | 16 | 100x40 | 8x14 | 800x560 | A000h |
| 54h | Graphique | 16 | 100x42 | 8x14 | 800x600 | A000h |
| 58h | Texte | 16 | 80x33 | 8x14 | 640x462 | B800h |
