Spécification
Voici les caractéristiques de la carte «Video 7 Vega» de «Video Seven»:
| Spécification | Description |
|---|---|
| Fabricant | Video Seven, Inc. |
| Bus/Interface | ISA 8-bits |
| Type de mémoire | DRAM |
| Quantité de mémoire | 256 Ko à 512 Ko |
| Catégorie | Super VGA |

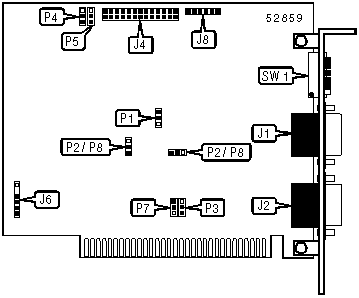

Voici la maquette de la carte graphique:
Mode vidéo
Voici la liste des différents modes vidéo supporté par la carte:
| Mode | Type | Couleurs | Format Alpha | Taille car. | Taille écran | Adresse écran |
|---|---|---|---|---|---|---|
| 00h | Texte | 16 | 40x25 | 9x16 | 360x400 | B800h |
| 01h | Texte | 16 | 40x25 | 9x16 | 360x400 | B800h |
| 02h | Texte | 16 | 80x25 | 9x16 | 720x400 | B800h |
| 03h | Texte | 16 | 80x25 | 9x16 | 720x400 | B800h |
| 04h | Graphique | 4 | 40x25 | 8x8 | 320x200 | B800h |
| 05h | Graphique | 4 | 40x25 | 8x8 | 320x200 | B800h |
| 06h | Graphique | 2 | 80x25 | 8x8 | 640x200 | B800h |
| 07h | Texte | 4 (Mono) | 80x25 | 9x16 | 720x400 | B000h |
| 0Dh | Graphique | 16 | 40x25 | 8x8 | 320x200 | A000h |
| 0Eh | Graphique | 16 | 80x25 | 8x8 | 640x200 | A000h |
| 0Fh | Graphique | 4 (Mono) | 80x25 | 8x14 | 640x350 | A000h |
| 10h | Graphique | 16 | 80x25 | 8x14 | 640x350 | A000h |
| 11h | Graphique | 2 | 80x30 | 8x16 | 640x480 | A000h |
| 12h | Graphique | 16 | 80x30 | 8x16 | 640x480 | A000h |
| 13h | Graphique | 256 | 40x25 | 8x8 | 320x200 | A000h |
| 25h | Graphique | 16 | ? | ? | 640x480 | ????h |
| 27h | Graphique | 16 | ? | ? | 720x512 | ????h |
| 28h | Texte | ? | ? | ? | ? | ????h |
| 29h | Graphique | 16 | ? | ? | 800x600 | ????h |
| 2Dh | Graphique | 256 | ? | ? | 640x350 | ????h |
| 2Eh | Graphique | 256 | ? | ? | 640x480 | ????h |
| 2Fh | Graphique | 256 | ? | ? | 750x512 | ????h |
| 30h | Graphique | 256 | ? | ? | 800x600 | ????h |
| 36h | Graphique | 16 | ? | ? | 960x720 | ????h |
| 37h | Graphique | 16 | ? | ? | 1024x768 | ????h |
| 40h | Texte | ? | 80x43 | ? | ? | ????h |
| 41h | Texte | ? | 132x25 | ? | ? | ????h |
| 42h | Texte | ? | 132x43 | ? | ? | ????h |
| 43h | Texte | ? | 80x60 | ? | ? | ????h |
| 44h | Texte | ? | 100x60 | ? | ? | ????h |
| 4Dh | Texte | ? | 120x25 | ? | ? | ????h |
| 4Eh | Texte | ? | 120x43 | ? | ? | ????h |
| 4Fh | Texte | ? | 132x25 | ? | ? | ????h |
| 50h | Texte | 4 (Mono) | 80x43 | ? | ? | ????h |
| 51h | Texte | 4 (Mono) | 132x25 | ? | ? | ????h |
| 52h | Texte | 4 (Mono) | 132x43 | ? | ? | ????h |
| 5Eh | Graphique | 256 | ? | ? | 640x400 | ????h |
| 5Fh | Graphique | 256 | ? | ? | 752x410 | ????h |
| 61h | Graphique | ? | ? | ? | 720x540 | ????h |
| 62h | Graphique | ? | ? | ? | 800x600 | ????h |
